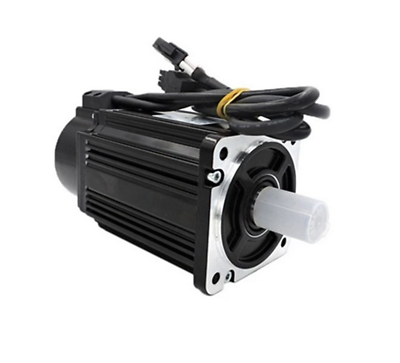

Yaskawa SGMMV-A3E2A21 Servo Motor SGMMVA3E2A21

Description:

The Yaskawa SGMMV-A3E2A21 is a 30W AC servo motor from the Sigma-5 Mini series, designed for ultra-compact, high-precision motion control applications. With its low-inertia design, 20-bit absolute encoder, and straight shaft without key, it delivers fast response and positioning accuracy in tight-space installations such as semiconductor tools, laboratory automation, and micro-assembly equipment.

TECHNICAL SPECIFICATIONS:
Manufacturer: Yaskawa
Model Number: SGMMV-A3E2A21
Series: Sigma-5 Mini
Type: AC Servo Motor
Rated Power: 30W
Rated Voltage: 200V AC
Rated Speed: 3000 RPM
Maximum Speed: 6000 RPM
Rated Torque: 0.095 Nm
Peak Torque: ~0.29 Nm
Encoder: 20-bit absolute encoder
Shaft Type: Straight shaft (no key)
Mounting: Flange
Brake: None
Protection Rating: IP40 (typical for Mini series motors)
Application: Semiconductor equipment, micro-positioning, compact robotics
