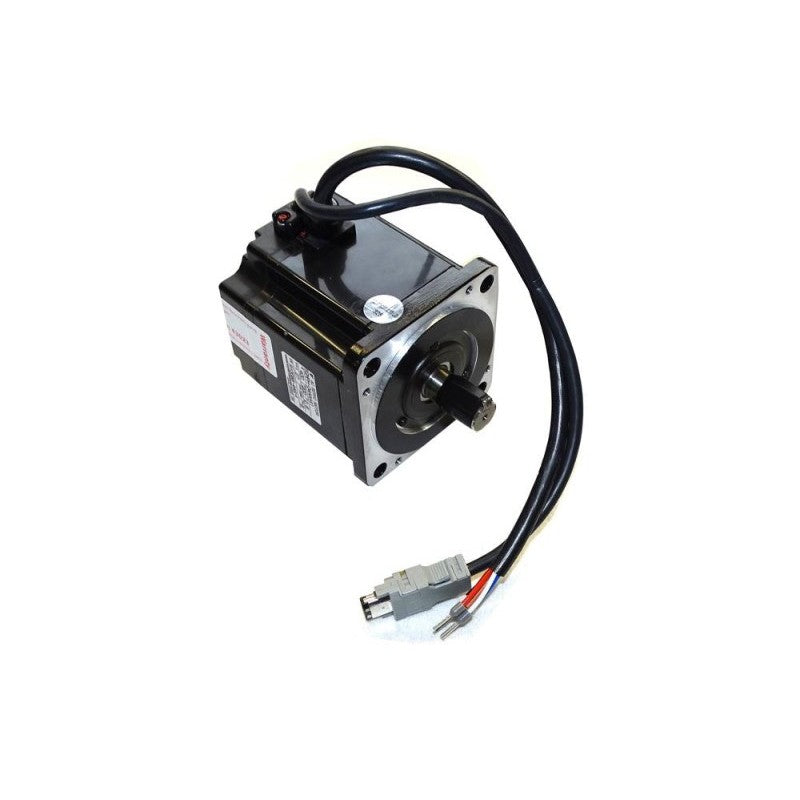

Yaskawa SGMPH-04AAA41AC Servo Motor SGMPH04AAA41AC

Description:

The Yaskawa SGMPH-04AAA41AC is a compact, high-performance AC servo motor from the Sigma II series, designed for precision motion control in industrial automation systems. With a 400W power rating and a maximum speed of 3000 RPM, this motor delivers reliable torque and speed for applications such as robotics, CNC machinery, packaging lines, and semiconductor equipment. It features a 17-bit absolute encoder for accurate position feedback and a straight shaft without a brake, making it suitable for general-purpose motion applications.

TECHNICAL SPECIFICATIONS:

Series: Sigma II
Model: SGMPH-04AAA41AC
Motor Type: AC Servo Motor
Rated Power: 400W (0.4 kW)
Rated Speed: 3000 RPM
Rated Torque: 1.27 Nm
Peak Torque: 3.82 Nm
Voltage: 200V AC
Encoder Type: 17-bit Absolute Encoder
Shaft Type: Straight shaft, without key
Brake: No
Mounting Type: Flange mount
Protection Class: IP65 (excluding shaft area)
Cooling Method: Natural convection
Insulation Class: F
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Weight: Approx. 1.8 kg (3.97 lbs)
Applications: Robotics, CNC, packaging, general automation
Compatible Drives: Yaskawa Sigma II Servo Drives (e.g., SGDH series)
