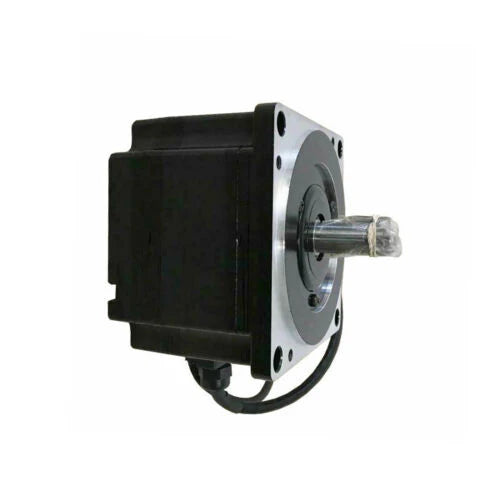

Yaskawa SGMPH-08AAE41D AC Servo Motor SGMPH08AAE41D

Description:

The Yaskawa SGMPH-08AAE41D is a 750W AC servo motor from the Sigma II series, offering a combination of high torque density, compact design, and responsive performance. It features a medium-inertia rotor, a straight shaft with key and tap, and an incremental encoder for precise motion control. Ideal for demanding automation tasks, it is commonly used in machine tools, robotics, and industrial automation systems.

TECHNICAL SPECIFICATIONS:
Manufacturer: Yaskawa
Model Number: SGMPH-08AAE41D
Series: Sigma II
Type: AC Servo Motor
Rated Power: 750W
Rated Voltage: 200V AC
Rated Speed: 3000 RPM
Maximum Speed: 5000 RPM
Rated Torque: 2.39 Nm
Peak Torque: ~7.16 Nm
Encoder: Incremental encoder (131,072 pulses/rev)
Shaft Type: Straight with key and tap
Mounting: Flange
Brake: No
Protection Rating: IP65 (excluding shaft)
Application: CNC machinery, robotics, industrial automation
