Yaskawa V1000 CIMR-VB4A0007BBA Inverter CIMRVB4A0007BBA

Description:

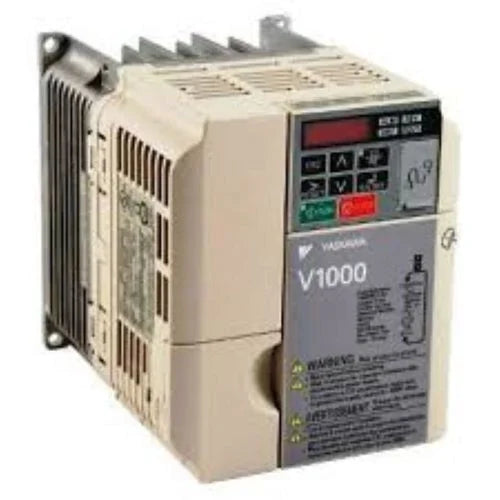

Condition Brand New UPC Brand Yaskawa MPN CIMR-VB4A0007BBA Model CIMR-VB4A0007BBA The Yaskawa V1000 CIMR-VB4A0007BBA is a compact and versatile AC inverter designed to provide efficient and reliable control for various motor applications. This inverter features advanced vector control and provides precise speed and torque regulation, making it suitable for a wide range of industrial tasks. Its compact design allows for easy integration into space-constrained environments, while its robust performance ensures reliable operation even in demanding conditions. The V1000 is equipped with user-friendly programming and diagnostic features, making it easy to configure and monitor, and it supports a variety of communication protocols for flexible integration into automation systems.

Technical Specifications:

• Model: CIMR-VB4A0007BBA
• Type: AC Inverter (Variable Frequency Drive)
• Rated Output Power: 0.75 kW (1 HP)
• Rated Voltage: 200-240 V AC, Single-phase
• Rated Current: 4.0 A
• Power Supply Frequency: 50/60 Hz
• Control Method: Advanced vector control (V/f control also available)
• Communication Protocols: Standard RS-485, optional communication boards for additional protocols (e.g., Modbus, Profibus)
• Safety Functions: Built-in safety features including overcurrent, overload, and overheating protection
• Cooling Method: Natural air cooling
• Protection Rating: IP20 (suitable for indoor use)
• Mounting: Panel mount
• Operating Temperature Range: 0 to 40°C (32 to 104°F)
• Weight: Approximately 1.5 kg (3.3 lbs)
• Dimensions: 130 mm x 100 mm x 150 mm (5.1 in x 3.9 in x 5.9 in)
